DECADE BOX

Consist of Resistor, Inductor, Capacitor and Standard circuit such as Wheatstone bridge, DC kelvin bridge, ETC.

  • Resistor Box
    Resistor Box

  • CAPACITOR BOX
    CAPACITOR BOX

  • Inductor Box
    Inductor Box

  • LCR Matrix Box
    LCR Matrix Box

DECADE BOX Configuration Table (sort by characteristic)

Please scroll to the sides when using small displays
Product Type Range Accuracy Max. Dimensions(LxWxH) Weight Price (THB)

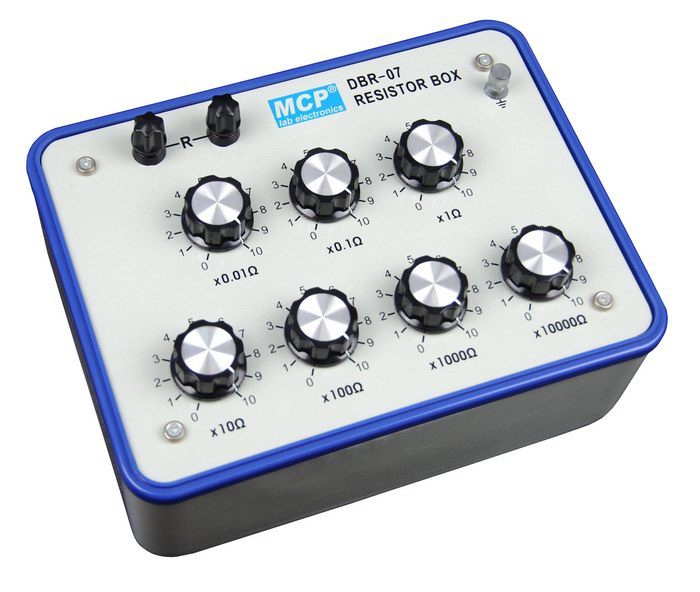

DBR-07 Precision Resistor Box 0.01 ~ 1M Ohm 1% 7mA ~ 700mA 285x140x215 mm 2.2kg -
DBR-06 Precision Resistor Box 0.1 ~ 1M Ohm 1% 7mA ~ 700mA 285x140x215 mm 2.2kg -

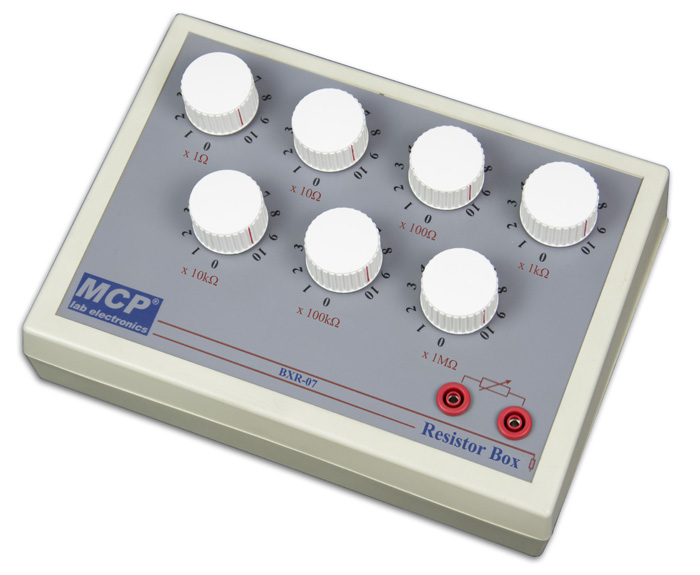

BXR-07 Resistor Box 1 ~ 10M Ohm 1% 0.11mA ~ 700mA 170x240x90 mm 0.8kg -
BXR-06 Resistor Box 1 ~ 1M Ohm 1% 1mA ~ 700mA 170x240x90 mm 0.8kg -
BXR-05 Resistor Box 1 ~ 100k Ohm 1% 7mA ~ 700mA 190x140x80 mm 0.5kg -
BXR-04 Resistor Box 1 ~ 10k Ohm 1% 20mA ~ 700mA 190x140x80 mm 0.5kg -
DBL-06 Precision Inductor Box 0.01mH ~ 10H 2% 40mA ~ 200mA 285x140x215 mm 2.2kg -
BXL-07 Inductor Box 1uH ~ 10H 5% 40mA ~ 300mA 170x240x90 mm 1.2kg -
DBC-05 Precision Capacitor Box 0.1nF ~ 1uF 5% 300VDC/230VAC (50Hz) 285x140x215 mm 2.2kg -
BXC-05 Capacitor Box 0.1nF ~ 1uF 5% 300VDC/230VAC (50Hz) 170x240x90 mm 0.8kg -

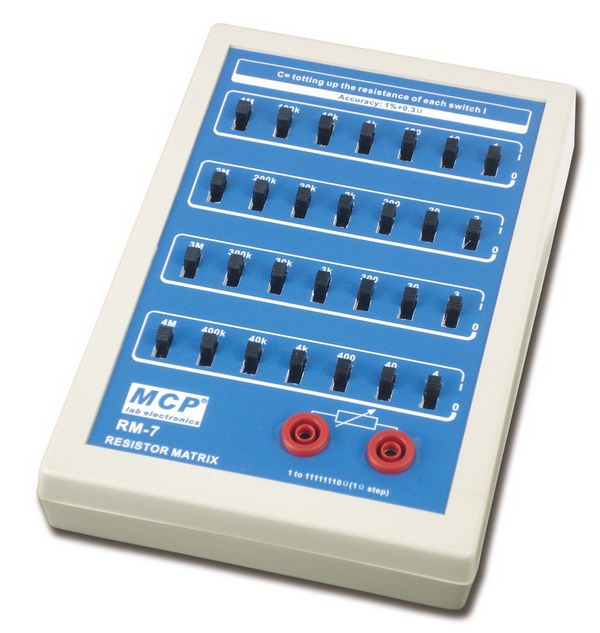

RM-7 Resistor Matrix 0 ~ 11.111M Ohm 1% 0.5W 190x140x80 mm 400g -
IM-4 Inductor Matrix 0 ~ 111.1mH 5% 100mA 190x40x80 mm 450g -
CM-5 Capacitor Matrix 0 ~ 11.111uF 5% 50VDC 190x140x80 mm 350g -
